Sight Glass

MM 436

Bronze Sight Glass

Specifications:

Single Window with Toughened Glass
Screwed Female BSP Taper Threads to BS : 21

Hyd. Tested:

35 Kgf / cm² (500 PSIG)
Suitable for Max. 17.58 Kgf / cm² at 225°C

Size Range:

15mm (1/2") - 50mm( 2" )

Download PDF

Bronze Sight Glass

Specifications:

Single Window, Toughned Glass with Flow Indicator
Pressure Rating - PN20
Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

30 Kgf/cm² (425 PSIG)

Size Range:

15mm ( 1/2 ") - 50mm ( 2 " )

Download PDF

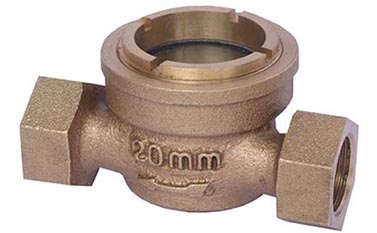

Sight Glass

MM 246
