mm 447

MM 447

Cast Steel Gate Valve Flg.

Specifications:

Cast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A216 Gr. WCB)
Conforming to BS 1873 , Bolted Bonnet, O/S & Yoke Type, Rising Stem, With Renewable Seat & Disc , SS Trim.
Pressure Rating: Class-150
Flanges as per ASME B 16.5 Class-150 RF (Undrilled)

Hyd. Tested:

31 Kg/cm² (435 PSIG)

Size Range:

40mm ( 1-1/2 ") - 100mm ( 4 " )

Download PDF

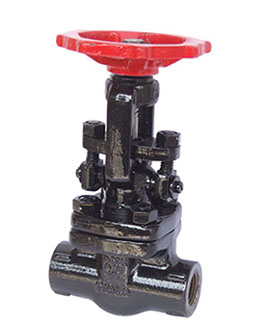

Forged Carbon Steel Gate Valve

Specifications:

Confirming to BS: 5352 / API: 602, Bolted Bonnet ,Back Seat Arrangement, Reduced Bore, O/S & Yoke Type, Rising Stem, Renewable Seat with S.S working parts.
Pressure Rating – Class 800
Screwed Female NPT Threads to ANSI B1.20.1 OR
Socket Welded Ends as per ASME B 16.11

Hyd. Tested:

211 Kgf / cm² (3000 PSIG)

Size Range:

15mm (1/2 ") - 50mm( 2 " )

Download PDF

MM 448

MM 448
