- MALA® Bronze Swing Check Valve
Integral Seat
Screwed Female BSP Threads
- Hyd. Tested - 20 Kgf / cm2 (300 PSIG)
- Size Range - 15mm (1/2 ") - 50mm( 2 ")
|
| |
|
|
| |
|
| |
|

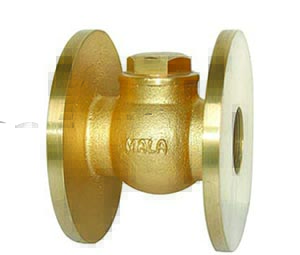

- MALA® Bronze Horizontal Check Valve Flanged No.8
Flanged as per BS : 10 Table 'H' (Undrilled)
- Pressure Rating PN - 10 to PN -16
- Hyd. Tested - 20 Kgf / cm2 (300 PSIG)
- Size Range - 15mm ( 1/2 ") - 150mm( 6 " )
|
|
 |
|
| |
|
| |
 |
|
- MALA® Bronze Horizontal Check Valve No.9
with Stainless Steel (AISI -40) Working Parts
Screwed Female BSP Threads
- Pressure Rating PN -25
- Hyd. Tested - 35 Kgf / cm2 (500 PSIG)
- Size Range - 8mm (1/4 ") - 100mm( 4 " )
|
|
|
| |
|
| |
|
- MALA® Bronze Horizontal Check Valve Flanged No.9F
with Stainless Steel (AISI -40) Working Parts
Flanged as per BS : 10 Table 'F' (Undrilled)
- Pressure Rating PN - 25
- Hyd. Tested - 35 Kgf / cm2 (500 PSIG)
- Size Range - 15mm ( 1/2 ") - 100mm( 4 " )
|
|
 |
|
| |
|
| |
 |
|
|
- MALA® Bronze Horizontal Lift Check Valve
Straight Pattern, Screwed in Cover, Renewable Stainless Steel (AISI -410) Working Parts
- Screwed Female BSP Taper Threads to BS : 21
- Hyd. Tested - 35 Kgf / cm2 (500 PSIG)
Suitable for Max. Steam Working Pressure 17.58 Kgf / cm2 at 225oC
- Size Range - 15mm (1/2 ") - 50mm( 2 " )
|
|
| |
|
|
|
